NOTE: This online shop is positioned as an E-catalog of OLEARN for you checking our products and latest price easily. You can select the items and sumbit your wish list when we are not online, you will get our response within 24 hours.
| QTY | Price |
|---|---|
| ≥ 1 | $USD 155.000 |
| ≥ 10 | $USD 145.000 |
| ≥ 50 | $USD 135.000 |
106 in stock.
QTY:

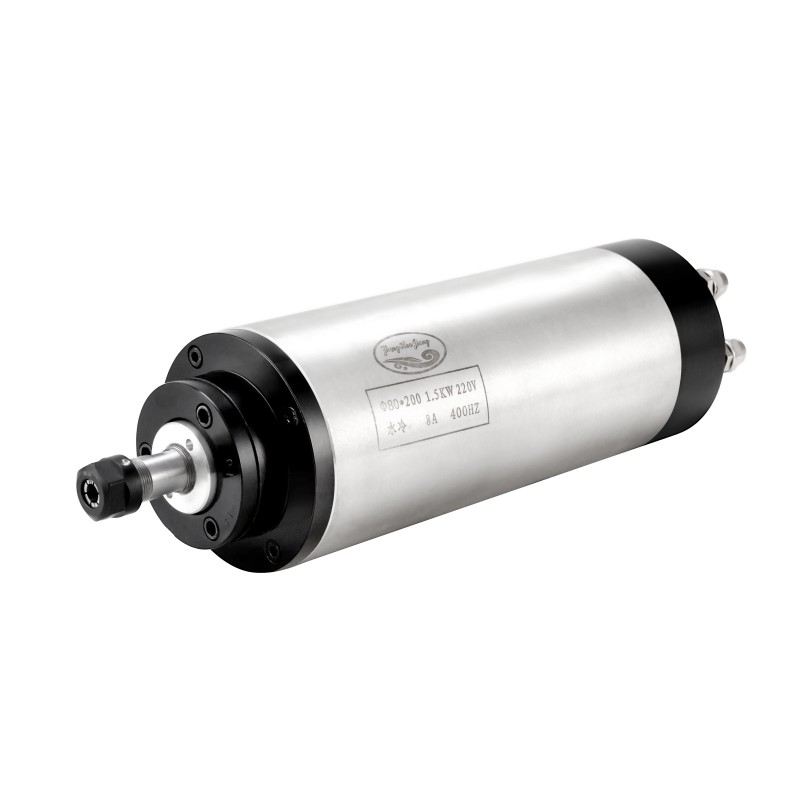

For those unfamiliar with what a spindle motor is, it is a motor that is designed to rotate at high speeds, most commonly used in applications such as CNC milling machines. Like all motors, spindle motors can and will break suffering many of the same failure modes as other types of motors.
| 1.5KW | |
| 110V or 220V option | |
| Frequency: | 400HZ |
| 5000-18000RPM | |
| Runout off: | less than 0.005mm |
| Dimension: | Φ80mm*267mm |
【TECHNICAL PARAMETERS】
This spindle should be equipped with VFD 400HZ.3HP, 2 Poles, Collet ER11-6mm,Diameter： Φ80mm，Voltage: 110V/220V ,Power: 1.5 KW, Frequency: 400 Hz, Current: 8A, Speed: 5000-24000 RPM, Runout off: less than 0.005 mm,weight:4.5kg(9.92lbs)
【ADVANTAGE 】
Authentic 4pcs upgraded steel bearings significantly extend working life 3 times longer than ordinary spindle motor; Advanced dynamic balance technology effectively reduce the noise and increase stability in the working process; Runout off less than 0.005mm beyond expectation.
【EASY AND FAST TO INSTALL 】
We offer pre-soldered wire with aviation connector, it will take just 3 minutes to connect spindle motor to VFD.
【APPLICATION】
Wood/ PVC/PCB/PMMA/Plastic/Aluminum carving/engraving machine, advertisement engraving machine,CNC router machine, small sized processing center, high speed centrifuge
Draw And Features:
The related kits for spindle motors you may need, contact us for more details.
3 times extended working life We use authentic 4pcs upgraded of superior durability steel bearings and all copper lengthening coil of rotor for spindle motor that will significantly extend 3 times longer working life. In normal case, the working life of our spindle motor can reach 2 years for 8 hours/day. |  Very easy and fast to install For your convenience , we offer pre-soldered wire with aviation connector that will be easy and fast to connect our spindle motor with VFD(Inverter). It will take just 5 minutes to install all and make all functions running. There are 4 pins "1,2,3,4" on aviation connector. "1,2,3 " connect to "U,V.W" of VFD(Inverter) , "4" connects to ground. |  10 times Precision Runout off less than 0.005mm We make further processing for high accuracy & concentricity, the runout off of our spindle motor is less than 0.005mm that 10 times precision beyond normal spindle motor. |
|---|---|---|
 Anti-rust material , ordinary water as a coolant Just use ordinary water as a coolant . Extra thick grease lubrication . 3HP, 2 Poles Diameter： Φ100mm*308mm Weight:9kg |  Fully complete accessories This package includes fully complete accessories: aviation wire,power wire, 10Pcs Nano Blue Coat End Mill CNC Router Bits, 0.8-3mm, 1/8" Shank ,13pcs Collet ER20(1mm-13mm),10 meter water hose and 2 pcs wrenches. |  Clamp mount and water pump Durable Φ80mm Clamp Mount, easy assemble with spindle motor. 220V Water Pump and 10 meter Water hose(input and output). The water cooling hose od is Φ8mm. |
 What does it include? 1pcs 220V 3.3KW air cooled Spindle Motor 1pcs 220V 3.3W VFD Inverter 1pcs Φ80mm Clamp Mount 1pcs 220V water pump+10meter water hose 13pcs ER20 Collet(1mm-13mm) 10pcs Drill bits(0.8-3mm) 1pcs aviation wire 1pcs power wire 2 pcs wrenches |  Wide application Wood/Copper/Brass/PVC/PCB/ PMMA/Plastic/ Aluminum carving/engraving machine,advertisement engraving machine,CNC router machine, small sized processing center, high speed centrifuge etc |  High quality compact VFD(Inverter) It includes 1pcs 220V,3.3KW, 400HZ VFD(Inverter). The VFD had been pre-programmed for basic parameters , you don't need to make extra setting up. It is single phase(input), 3 phase (output).Our VFD adopt DSP vector control to enable motor to achieve high torque in low speed rotation. |
